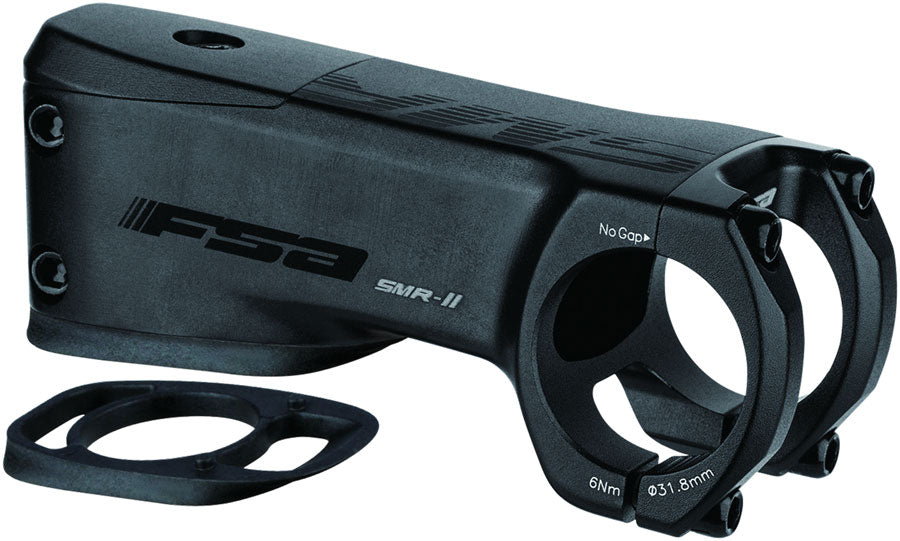

The NS SMR-II Stem features the SMR System – Smart Cable Routing – designed around a versatile stem and headset combination that allows for a variety of both integrated and semi-integrated cable routing. Utilizing FSA’s core knowledge base of both headset and cockpit components the SMR system provides a “plug-in” solution for bike brands looking to internally route cables wires and hoses from the cockpit into the frame. Compatible with electronic and mechanical shifting plus hydraulic and mechanical braking the SMR system truly is the most versatile and adaptable cable routing solution available on the market.

Smart Cable Routing (SMR)

3D forged and CNC machined AL6061

AL6061 cold forged front clamp

Chromoly hardware

31.8mm handlebar clamp

33.5mm fork clamp stack heigh

Fine blasted anodized black finish with laser etched FSA graphics

Includes 2x 10mm spacers 1x 5mm spacer Adapters for full internal cable routing and semi-ingtegrated cable routing

Stem Angle (deg)	-10
Length	90
Material	Aluminum
S.H.I.S. Stem Clamp Diameter	28.6
Bar Clamp Diameter (mm)	31.8
Color	Black
Weight	190
Defined Color	Black
Stack Height	34
