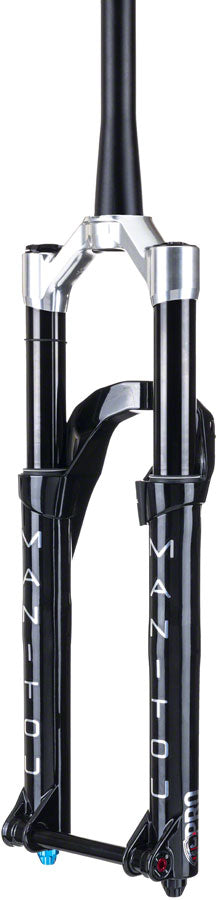

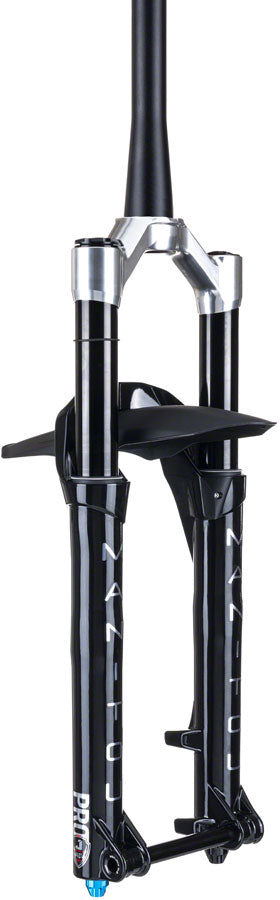

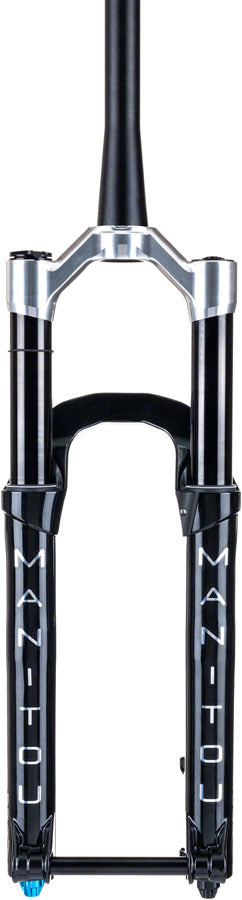

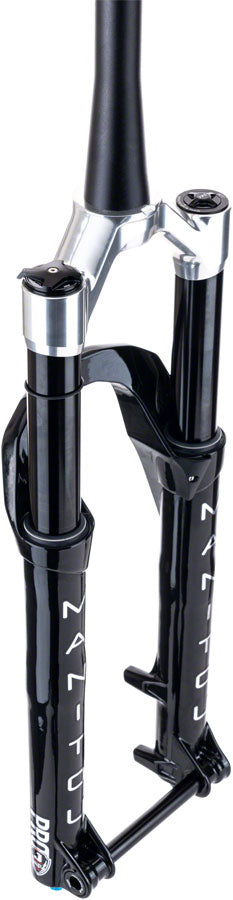

Manitou JUnit 34 Pro Suspension Fork - 24

120 mm
15 x 110 mm
41 mm Offset
Gloss Black
ManitouSKU: FK1404
No reviews

Sale price$799.99
Order soon - Only 5 units left
Sale - Discount Applied Automatically At Checkout

Manitou JUnit 34 Pro Suspension Fork - 24" 120 mm 15 x 110 mm 41 mm Offset Gloss BLK X

    Maple Valley - In Store Pickup

  • Order to store, usually arrives in 2 business days

  • 26921 Maple Valley Black Diamond RD SE
    Maple Valley WA 98038

    View in stock items at this location

    Home Delivery

  • In stock, ships Monday

  • Shipping & taxes calculated at checkout

Inventory & Shipping


Manitou JUnit 34 Pro Suspension Fork - 24" 120 mm 15 x 110 mm 41 mm Offset Gloss Black. The Junit 34 Pro represents the absolute maximum in terms of performance tuneability lightweight construction and reliability just like the adult versions of the Manitou Pro lineup. It is a veritable professional level fork with the only differences coming in the size and the tune specific to younger riders and their unique needs. Everything else is built up to the standards of the most demanding athlete competing at the sport’s highest level yet tailored to give specific benefits to the next generation of mountain biking stardom. At 1750 grams the Pro version is extremely light especially considering the 100-160mm travel range it covers. The Dorado Air spring with IRT derives from the same technology used in top professional adult forks. The VTT 6 position compression damping and half cartridge adjustable TPC rebound dampening make for a ride that most adults would envy. With adjustable air IRT rebound and 6-position compression even smaller riders can enjoy the uncommon benefit of a suspension performance tailored to their specific and individual needs.
  • 34mm chassis increases stiffness for bigger kids to go even bigger! 7000 series tapered legs for a lightweight stiff chassis
  • DoradoTM air allows for internal travel adjustments with no added parts. New travel spacers account for negative air volume change so the 100mm fork has the same initial stroke feel as the 160mm
  • The Dorado Air spring systems contain a unique balancing valve that equalizes the positive and negative air chambers during the air fill process. This gives the spring rate a consistent feel without any flat or dead spots in the stroke along with giving riders of different weights the same initial stroke feel. Dorado Air is our lightest weight air spring technology
  • Infinite Rate Tune (IRT) allows for advanced spring tuning by independently adjusting air pressures in the beginning and end stroke. IRT technology creates a secondary positive air spring that effects only the middle to end stroke of the fork. This allows the main air spring to be set to lower pressures for improved small bump sensitivity while maintaining mid-stroke support and moderate to aggressive end-stroke ramp-up
  • VTT-6P compression damper features a single external compression adjuster that simultaneously adjusts High and Low speed damping characteristics. It features a fixed shim stack and a secondary shim stack that is preloaded by the external adjuster. The resulting wide tuning range combines the benefits of a Low-speed platform and High-speed progressive tune can suite any terrain. From fire-road climbs to big flowy jump lines to high-speed chunky rocks VTT-6P can adapt to all terrain with flick of a switch
    Axle to Crown Length 474
    Brake Type Post Mount 160
    Color Black w/Polished Crown
    Crown Race 40
    Defined Color Black
    Designed for ebike Yes
    External Adjustments Rebound Damping
    External Adjustments High Speed Compression Damping
    External Adjustments Low Speed Compression Damping
    Front Axle 15mm Thru x 110mm
    Lockout Switch None
    Maximum Tire Width 67
    Offset 41
    Positive Spring Air
    S.H.I.S. Stem Clamp Diameter 28.6
    Stanchion Diameter 34
    Steerer Tube Length (mm) 250
    Steerer Type Tapered
    Travel (mm) 120
    Weight 1750
    Wheel Size 29"
    Item Specific Details
    UPC: 844171092026
    Manufacturer Part #: 191-39360-A205
    Model: JUnit 34 Pro Suspension Fork
    120 mm
    15 x 110 mm
    41 mm Offset
    Gloss Black
