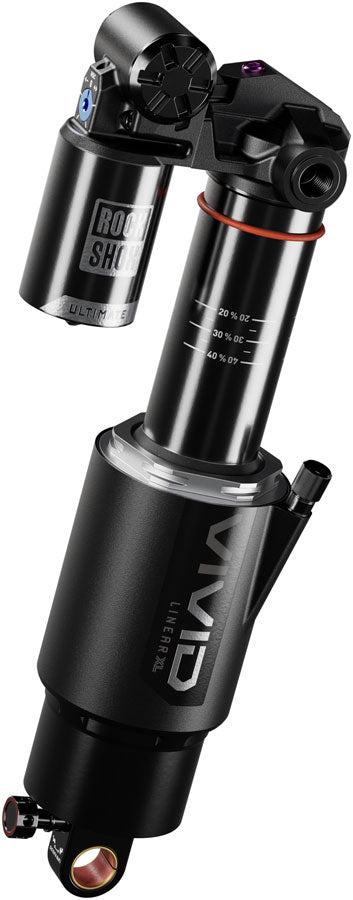

World Cup-proven and built to charge Vivid Ultimate DH sets a new standard in downhill performance. The Linear XL air spring delivers a coil-like feel—supple off the top supportive through the mid-stroke and backed by Adjustable Bottom Out for confident endstroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your BoXXer the RC2 damper’s new main piston compression tunes provide mid-stroke support while intuitive HSC/LSC adjusters make setup fast clear and easy to communicate. Bigger more aggressive and ready to push limits on downhill bikes—Vivid Ultimate DH redefines what a rear shock is capable of.

LinearXL air spring delivers a consistent and predictable ride feel tunable with easy-to-change bottomless tokens

New RC2 damper providing a wide usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk

Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping

New base valve with 40% reduction in IFP forces making it the most supple shock on the market while maintaining perfect traction

Main piston compression tunes matched in performance to the Charger 3.2 damper focused on providing mid-stroke support

Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel

Removable Rebound knob doubles as HSC and ABO adjuster

Max PSI increased to accomodate higher system weights

20 clicks of rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights

Stroke (mm)	75
Lockout Switch	Shock Mounted Switch
Eyelet Diameter (mm)	12.7
External Adjustments	Rebound Damping
Positive Spring	Air
Eye to eye length (mm)	225
