Description
This bike was part of our 2026 Transition Bikes Demo Fleet and has been professionally maintained throughout the season.
It has been routinely serviced according to manufacturer guidelines and will receive a complete service and inspection prior to sale, so it’s ready for its new owner.
A Protection Kit has been installed since new, helping protect the frame throughout its time in our demo fleet.
While this bike has been ridden, it has low miles and is in EXCELLENT condition. Best of all, it also comes with a full warranty, giving you added confidence in your purchase.
A great opportunity to get a professionally maintained Transition bike at a demo-fleet price! The original price for this bike is 9,499.00.
The all-mountain workhorse is here to deliver fun on every trail.
Bosch CX Gen 5 motor
The Bosch Performance Line CX powered Regulator packs 85m of torque with 600 watts of peak power from the 600wh battery and optional 250wh range extender. The main battery is enclosed in a slim downtube and provides hours of fun, while still allowing users to add the range extender if even longer rides are desired. This combination provides the best range to weight ratio for those who value lighter ride characteristics, with the option to ride all day with the range extender. Giving you the best of both worlds with one of the most reliable, powerful and intuitive motor systems available in the market.
Key Features
- Carbon frame, mixed wheel only
- Size specific CS Lengths (442mm SM/MD, 448mm LG/XL)
- 160mm fork travel, 150mm rear travel (160mm compatible with 65mm stroke shock)
- Bosch wireless 2 button Mini Remote

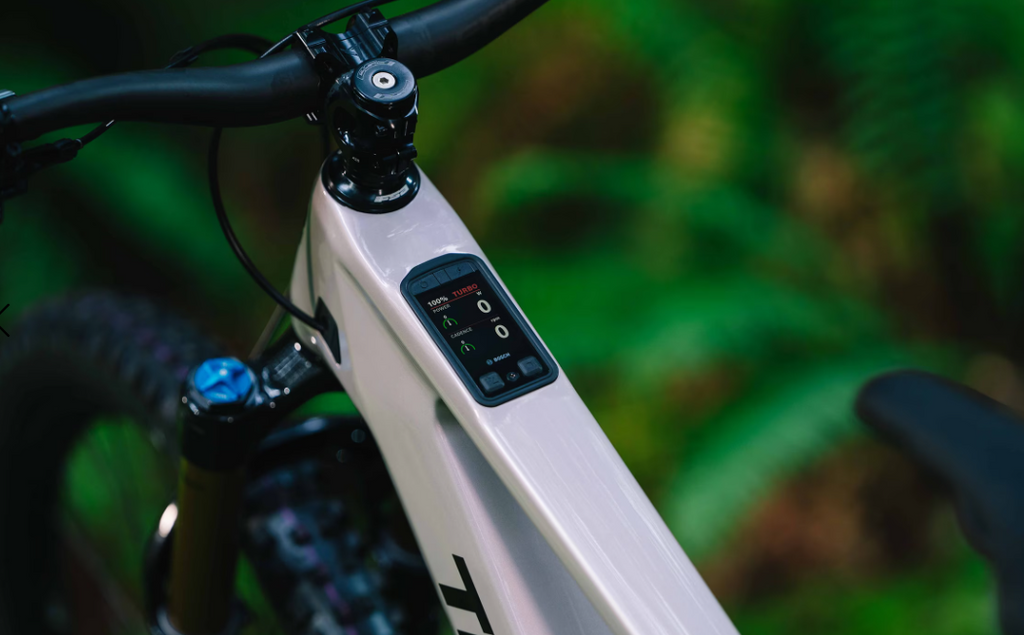

- Top tube mounted System Controller LED display
- New head tube cable routing ports
- Compatible with 0,1 or 2 cables per side
- Ideal routing for either right/rear or left/rear brake
assemblies - New chainstay protector design.
- Includes separate cable routing grommet or closed plug for wireless RD.
- Integrated Transition top chain guide included.
- Custom charge port cover w/ integrated range extender cable management.
- Bosch Performance Line CX drive unit with up to 120Nm of torque.
- Non-removable slide-in assembly for clean looks, minimum DT cross section, durability/robustness, lightest weight and least amount of noise.
- Geo-adjust chip at lower shock mount.
- Ideal balance of weight, handling, and power with flexible battery capacity.
- 600wh battery.
- 250wh range extender compatible with MD-XL sizes (sold separately).
| GEO | SM HIGH/LOW | MD HIGH/LOW | LG HIGH/LOW | XL HIGH/LOW | |
|---|---|---|---|---|---|
| A. REACH | 425/420 | 455/450 | 480/475 | 510/505 | |
| B. STACK | 623/628 | 632/637 | 641/646 | 651/656 | |
| C. EFFECTIVE TT LENGTH | 551/554 | 583/587 | 610/615 | 643/648 | |
| D. SEAT TUBE LENGTH | 375 | 400 | 440 | 470 | |
| E. EFFECTIVE ST ANGLE | 78.8/78.3 | 78.5/78.0 | 78.2/77.7 | 77.9/77.4 | |
| REFERENCE SEAT HEIGHT | 600 | 660 | 720 | 780 | |
| ACTUAL ST ANGLE | 75.0/74.5 | 75.0/74.5 | 75.0/74.5 | 75.0/74.5 | |
| ST OFFSET AT BB HEIGHT | 41 | 41 | 41 | 41 | |
| F. HEAD TUBE LENGTH | 105 | 115 | 125 | 135 | |
| G. HEAD TUBE ANGLE | 64.5/64.0 | 64.5/64.0 | 64.5/64.0 | 64.5/64.0 | |
| H. CHAINSTAY LENGTH | 442/444 | 442/444 | 448/450 | 448/450 | |
| I. WHEELBASE | 1201/1203 | 1235/1237 | 1271/1273 | 1305/1307 | |
| J. BOTTOM BRACKET DROP (FRONT WHEEL) | 25/20 | 25/20 | 25/20 | 25/20 | |
| BOTTOM BRACKET DROP (REAR WHEEL) | 5/10 | 5/10 | 5/10 | 5/10 | |
| K. ESTIMATED BB HEIGHT | 350/345 | 350/345 | 350/345 | 350/345 |
