Description

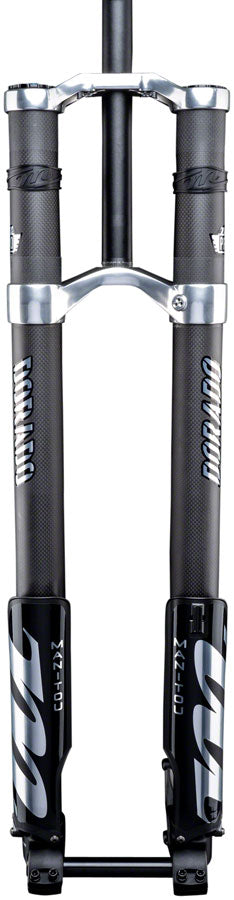

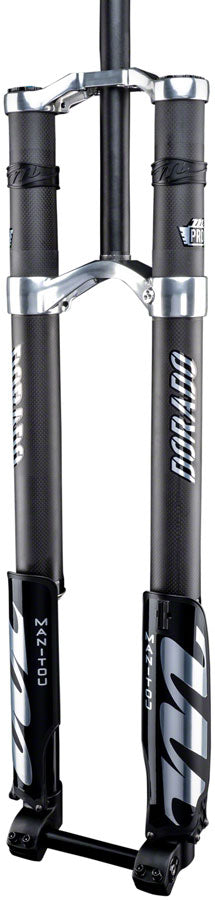

Manitou Dorado Pro Suspension Fork - 29" 203 mm 20 x 110 mm 57 mm Offset Black/Carbon Straight Steerer. Back in a big way the all-new Dorado Pro is ready to turn the suspension world upside down. Featuring an inverted design carbon upper structure 37mm stanchions and refreshed internals the new Dorado Pro is the pinnacle of suspension technology. The new stiffer chassis is paired with an all-new sealed version of Manitou’s TPC+ damper and improved Dorado Air Spring with IRT volume adjuster. These technologies combined into one ultimate platform provides more than enough tunability to satisfy any savvy suspension tuner while being so easy to adjust that every rider can dial in their fork with ease.Carbon Outer legs with 37mm 6000 Series Aluminum stanchions
Aluminum upper and lower crown and steerer
TPC+ with HBO damper system features separate systems that govern hydraulic bottom out high speed and low speed compression damping and an energy dependent damping circuit that responds to the overall oil displacement for a bottomless feel
TSR Bleeders Hydraulic and rubber bumper bottom out protection
Removable bolt on fender
180 190 203mm internally adjustable travel
- TECH SPECS
| Axle to Crown Length | 602 |
| Brake Type | Post Mount 203 |
| Color | Black/Carbon |
| Crown Race | 30 |
| Defined Color | Black |
| External Adjustments | Rebound Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | High Speed Compression Damping |
| Front Axle | 20mm Thru x 110mm |
| Lockout Switch | None |
| Maximum Tire Width | 67 |
| Negative Spring | Air |
| Offset | 57 |
| Positive Spring | Air |
| S.H.I.S. Stem Clamp Diameter | Direct Mount |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Stanchion Diameter | 37 |
| Steerer Tube Length (mm) | 251 |
| Steerer Type | Straight |
| Travel (mm) | 203 |
| Wheel Size | 29" |
Item Specific Details
UPC: 847863026620
Manufacturer Part #: 191-37419-A201
Model: Dorado Pro Suspension Fork
20 x 110 mm
203 mm
57 mm Offset
Black/Carbon
Straight Steerer
